Automatic Stair Lighting System

Model No.: HDLT001

The smart stair lighting system contains 1 controller unit and 2 sensors. Automatic Stair Lighting system sequentially illuminates every step when going along the staircase at night.  And the pixel strip installed along the handrail also can be triggered once there is anyone pass by the sensor.,which makes your stairway more interesting, comfortable and safe at night.

1) Input voltage: DC12V/24V

2) Output voltage: DC12V/24V

3) Output power: DC12V single channel ≤36W≤300W   DC24V single channel ≤36W≤500W

4) Pixel strip output power: DC12V/24V

5) Output power: single channel ≤150W total power ≤300W

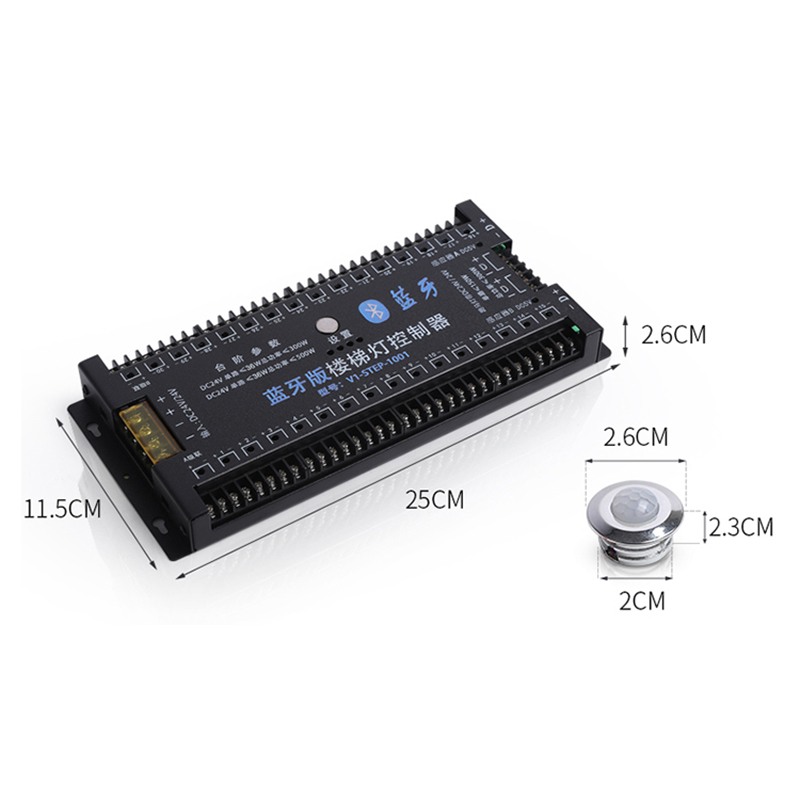

6) Product size: 25*11.5*2.6cm (L*W*H) Concealed sensor cut size: 2cm
